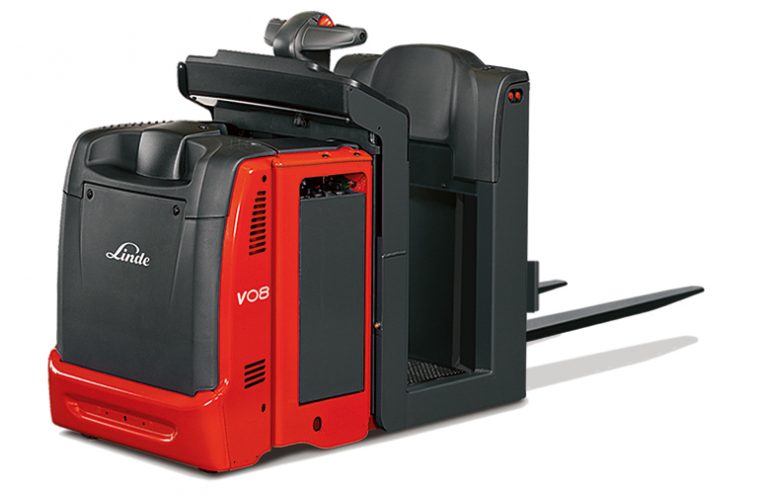

Linde make a low level order picker, however there has been confusion about the capacity of the different V08 – 1110 models. Linde make three different models of the V08 in the 1110 series range.
- V08-01 (short)
- V08-01 (long)
- V08-02
What the main differences are
1. The V08-01 (short) is the low level order picker model without the auxiliary lift and the short legs which end underneath the operator platform. This model has a capacity of 700 kg at a load centre of 500mm and 600kg at a load centre of 600mm.
2. The V08-01 (long) is the low level order picker model without the auxiliary lift and the long legs which end underneath the load supporting forks. The long version cannot be used with closed bottom pallets. This model has a capacity of 1,000kg at a load centre of 500mm and 1,000kg at a load centre of 600mm.
3. The V08-02 is the model with auxiliary lift. This model has a capacity of 800kg at a load centre of 500mm and 700kg at a load centre of 600mm.
Where you need to use low level order pickers
To fall into the low level order picking category, goods picking is performed above ground level. These types of order pickers must be positioned at a height that enables them to be accessed by an operator on foot or, at most, riding on the highest part of the body of a self-propelled pallet truck.
If you are in doubt of your requirement always make sure you talk to your local Linde dealer.
